1535nm LRF Module

The following is the introduction of high quality 1535nm LRF Module, hoping to help you better understand it. Welcome new and old customers to continue to cooperate with us to create a better future! High-performance 1535nm OEM laser ranging sensor solution helps you innovate.


The 1535nm erbium glass laser rangefinder module is a high-precision and eye safe laser rangefinder device widely used in fields such as electro-optical reconnaissance, electro-optical fire control, electro-optical monitoring, electro-optical measurement, unmanned aerial vehicle pods, and gimbal.


Product Features

High precision: The ranging accuracy can usually reach ± 1m, meeting most high-precision ranging requirements.

Human eye safety: 1535nm wavelength laser is harmless to the human eye and belongs to the near-infrared region. It usually has good propagation performance in the atmosphere and is less affected by weather conditions..

Long distance ranging: Provides multiple range options, such as 3km, 6km, 8km, 10km, etc., and even up to 20km or more, to meet the ranging needs of different scenarios.

High stability: Using high-quality erbium glass lasers and precise optical systems to ensure stable operation under various environmental conditions.

Easy to integrate: The module design is compact, lightweight, and easy to integrate into various optoelectronic devices.

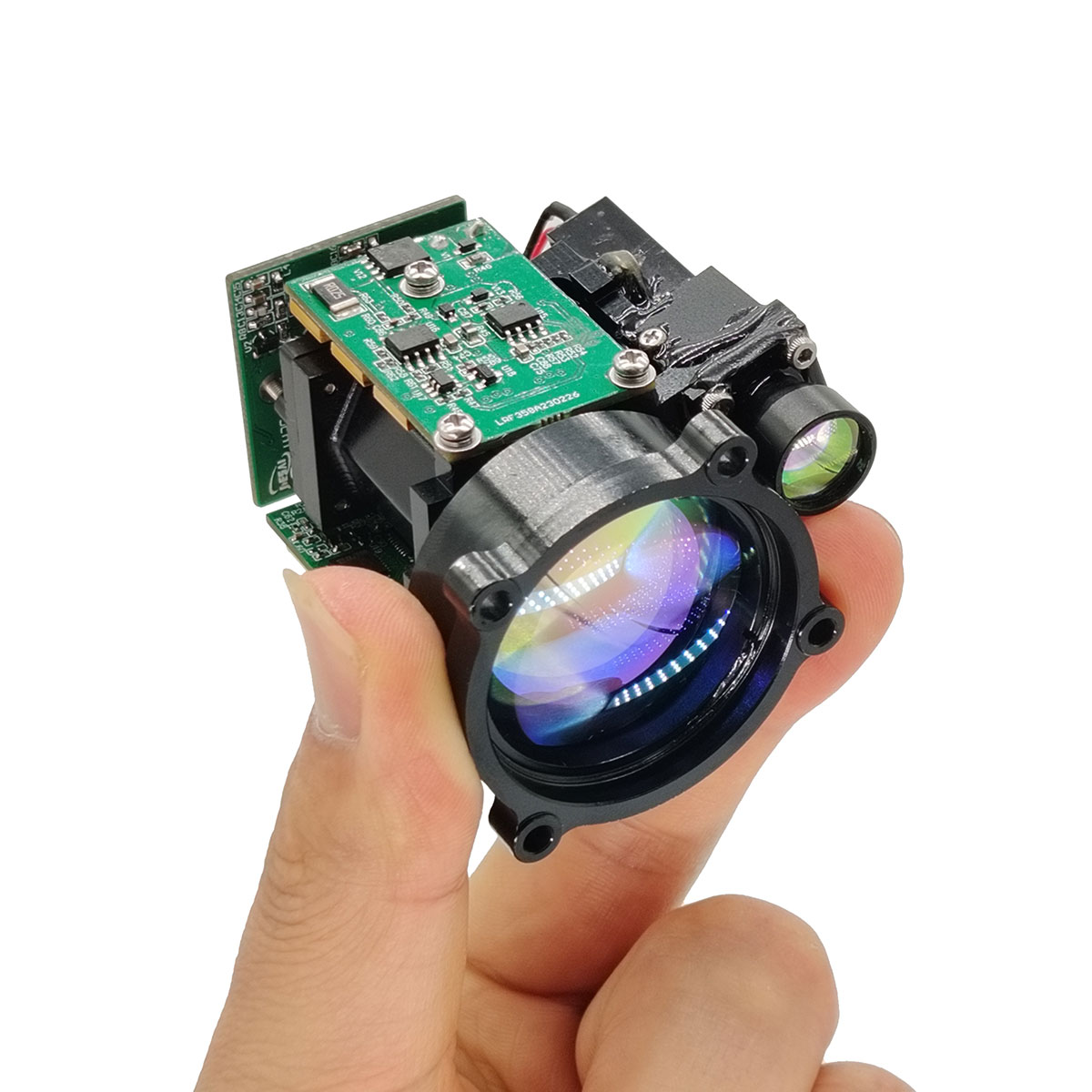

STA-B1015X

10km Eye-safe Laser Rangefinder Module(LRF)

STA-B1015X is a human eye-safe laser distance measurement module, which can detect the target distance and transmit the measured distance to the upper computer through serial communication. Visibility ≥ 15km, target reflectivity ≥ 0.3, humidity ≤ 80%, the vehicle 2.3m × 2.3m(NATO target) ranging distance≥10km;Building 10km Eye-safe Laser Rangefinder Module(LRF).

View More
10km Eye-safe Laser Rangefinder Module(LRF)

7km Eye-safe Laser Rangefinder Module(LRF)

STA-B0710X is a human eye-safe laser distance measurement module, which can detect the target distance and transmit the measured distance to the upper computer through serial communication. Visibility ≥ 15km, target reflectivity ≥ 0.3, humidity ≤ 80%, the vehicle (2.3m × 2.3m NATO target) ranging distance≥7km;Building 7km Eye-safe Laser Rangefinder Module(LRF).

View More
7km Eye-safe Laser Rangefinder Module(LRF)

6km Eye-safe Laser Rangefinder Module(LRF)

STA-B0610X is a 6km Eye-safe Laser Rangefinder Module(LRF) distance measurement module, which can detect the target distance and transmit the measured distance to the upper computer through serial communication. Visibility ≥ 15km, target reflectivity ≥ 0.3, humidity ≤ 80%, the vehicle (2.3m × 2.3m NATO target) ranging distance ≥6km;Max Ranging≥10km.

View More
6km Eye-safe Laser Rangefinder Module(LRF)

5km Eye-safe Laser Rangefinder Module(LRF)

STA-B50X is a human eye-safe laser distance measurement module, which can detect the target distance and transmit the measured distance to the upper computer through serial communication. Visibility ≥ 12km, target reflectivity ≥ 0.3, humidity ≤ 80%, the vehicle (2.3m × 2.3m NATO target) ranging distance ≥5km.

View More
5km Eye-safe Laser Rangefinder Module(LRF)

4km Eye-safe Laser Rangefinder Module(LRF)

STA-B40X is a human eye-safe laser distance measurement module, which can detect the target distance and transmit the measured distance to the upper computer through serial communication. Visibility ≥ 12km, target reflectivity ≥ 0.3, humidity ≤ 80%, the vehicle (2.3m × 2.3m target) ranging distance ≥ 4km.

View More
4km Eye-safe Laser Rangefinder Module(LRF)
STA-B1220X

12km Eye Safety Laser Rangefinder Module

● STA-B1220X laser rangefinder module adopts self-developed 1535nm erbium glass laser component, which has the features of long range, low power consumption, small size and human eye safety. You can rest assured to buy customized 12km Eye Safety Laser Rangefinder Module from us.
● Range performance: 12000m (2.3x2.3m NATO Target),20000m (Maximum range)
● Ranging accuracy ± 2m
● Measurement accuracy ≥ 98%
● Weight ≤ 350g

View More
12km Eye Safety Laser Rangefinder Module

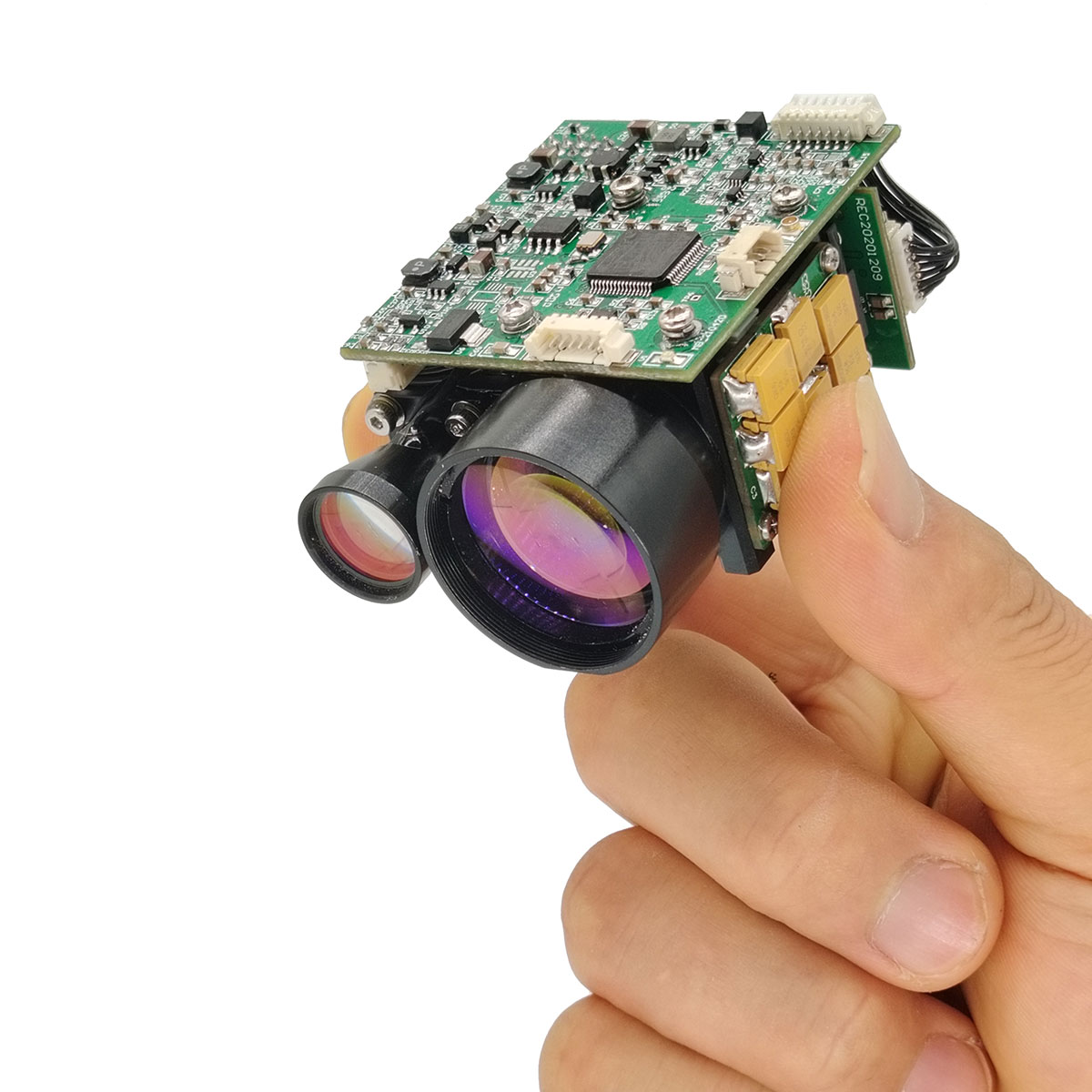

JIO-B0815X

8km Eye Safety Laser Rangefinder Module

● As the professional manufacturer, we would like to provide you high quality 8km Eye Safety Laser Rangefinder Module. JIO-B0815X laser rangefinder module adopts self-developed 1535nm erbium glass laser component, which has the features of long range, low power consumption, small size and human eye safety.
● Range performance: 8000m (2.3x2.3m NATO Target),15000m (Maximum range)
● Ranging accuracy ± 2m
● Measurement accuracy ≥ 98%
● Weight ≤ 120g

View More
8km Eye Safety Laser Rangefinder Module
STA-C2030X

20km Eye safety Laser Rangefinder Module

● As the professional manufacturer, we would like to provide you 20km Eye safety Laser Rangefinder Module. STA-C2030X laser rangefinder module adopts self-developed 1535nm erbium glass laser component, which has the features of long range, low power consumption, small size and human eye safety.
● Range performance: 20000m (NATO Target),30000m (Maximum range)
● Ranging accuracy ± 1m
● Measurement accuracy ≥ 98%
● Weight ≤ 380g

View More
20km Eye safety Laser Rangefinder Module
STA-C1826X

18km Eye Safety Laser Rangefinder Module

● STA-C1826X laser rangefinder module adopts self-developed 1535nm erbium glass laser component, which has the features of long range, low power consumption, small size and human eye safety. You can rest assured to buy 18km Eye Safety Laser Rangefinder Module from our factory.
● Range performance: 18000m (NATO Target),26000m (Maximum range)
● Ranging accuracy ± 1m
● Measurement accuracy ≥ 98%
● Weight ≤ 380g

View More
18km Eye Safety Laser Rangefinder Module

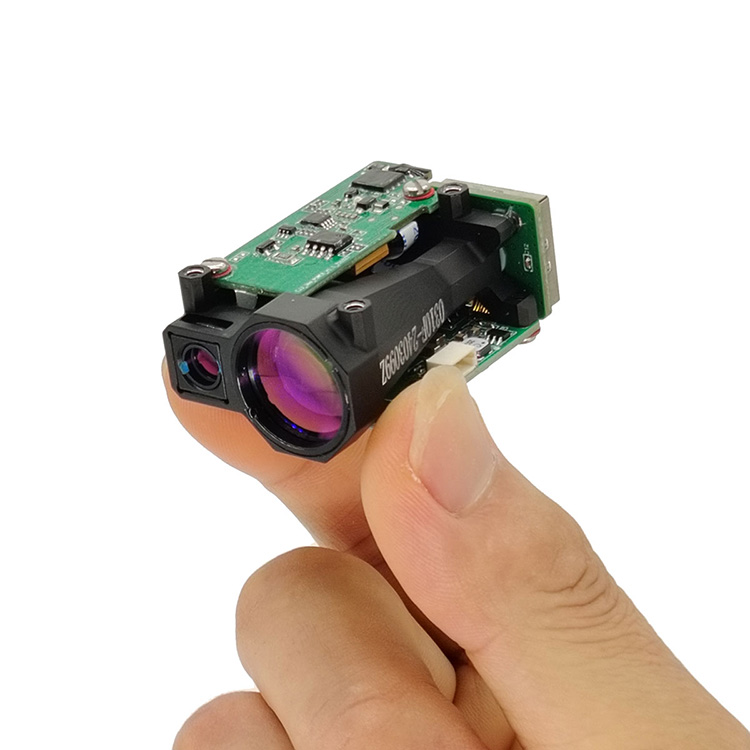

STA-LD30X

3km Micro Laser Rangefinder LRF Module

The STA-LD30X 3km Micro Laser Rangefinder LRF Module adopts the 1535nm eye-safe erbium glass laser module independently developed by Jioptik factory, which has the characteristics of low power consumption, small size, high precision and eye safety.
Maximum measuring range: 3000m (2.3x2.3m vehicle) 6000 m (White wall)
Ranging accuracy ± 1m
Measurement accuracy ≥ 98%
Weight ≤ 75g

View More
3km Micro Laser Rangefinder LRF Module

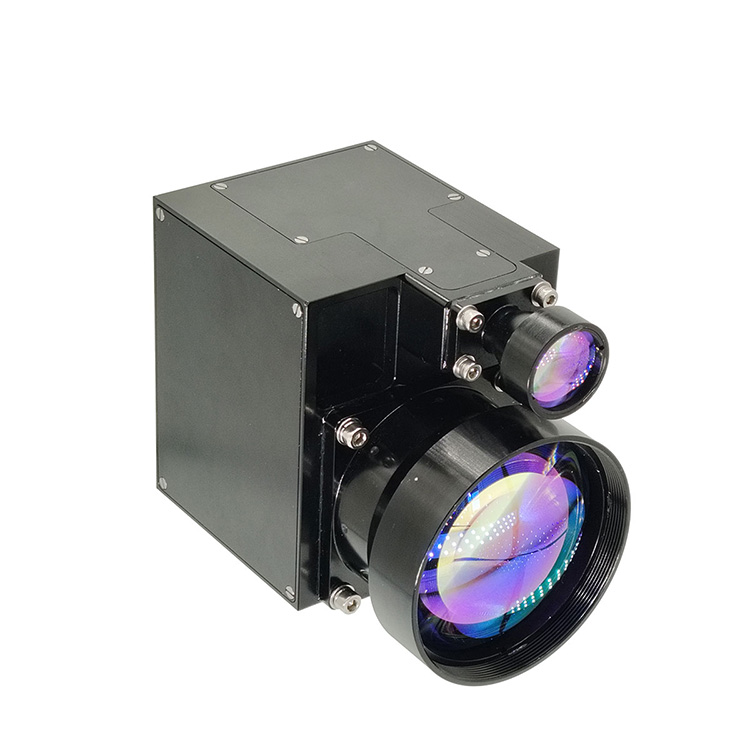

JIO-H2025X

20km Laser Rangefinder Module

JIO-H2025X 20km Laser Rangefinder Module adopts the 1535nm eye-safe erbium glass laser module independently developed by Jioptik factory, which has the characteristics of low power consumption, small size, high precision.
Maximum measuring range: 20000m (2.3x2.3m NATO Target); Max Ranging 25000m.
Ranging accuracy ± 2m
Measurement accuracy ≥ 98%
Weight ≤870g

View More
20km Laser Rangefinder Module

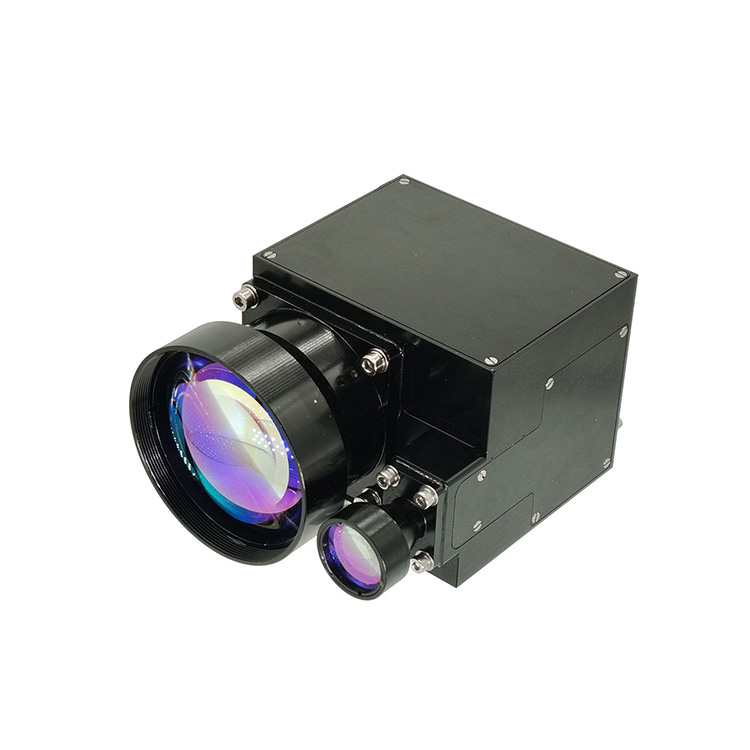

JIO-H1520X

15km Laser Rangefinder Module

JIO-H1520X 15km Laser Rangefinder Module adopts the 1535nm eye-safe erbium glass laser module independently developed by Jioptik manufacturer, which has the characteristics of low power consumption, small size, high precision.
Maximum measuring range: 15000m (2.3x2.3m NATO Target); Max Ranging 20000m.
Ranging accuracy ± 2m
Measurement accuracy ≥ 98%
Weight ≤870g

View More
15km Laser Rangefinder Module
As a 1535nm LRF Module manufacturer and supplier in China, we have our own factory. If you are interested in purchasing customized product, get in touch!

Get In Touch

For more information on our products, please contact Jioptik.
