As the professional manufacturer, we would like to provide you 2 Megapixel 35X Optical Zoom Ultra Starlight Camera Module Digital and Network. Our products are widely used in security, thermal imaging, unmanned aircraft, unmanned vehicles, artillery, aircraft, ships and vehicle-mounted positioning and orientation system integration.

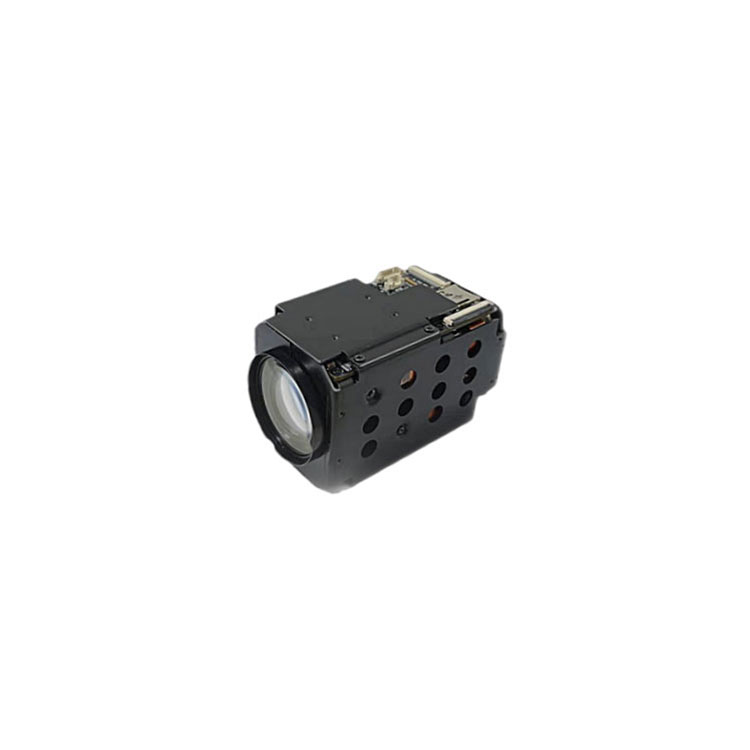

JIO-3523-DG 2 Megapixel 35X Optical Zoom Ultra Starlight Camera Module Digital and Network integrates an 35X optical electric zoom movement and a 2-megapixel high frame rate ultra starlight CMOS sensor, supporting electronic image stabilization, electronic fog transmission, distortion correction, shadow correction, corridor mode, etc., to adapt to all-weather monitoring environments.
● Ultra Starlight
● High frame rate
● 35x optical zoom
● 2 Megapixel 1920×1080P, P/N: 50fps /60fps
● Starlight level, 0.001Lux/F1.6(Color),0.0005Lux/F1.6(B/W)
● Support H.265/H.264, H.265+/H.264+ video compression algorithm
● Support electronic stabilization, electronic fogging, distortion correction, shadow correction, corridor mode.
● Support 3D positioning function
● Support 120dB optical wide dynamic
● Support SD card function, the maximum 256G
● Support GB/28181, onvif.
LVDS digital interface
Industry standard: 30 PIN LVDS interface
PIN TO PIN SONY 7520D
Through the conversion board, it can be converted to SDI, HDMI, analog (CVBS/BNC) and other interface outputs
Network interface
● Industry standard: 36 PIN interface
● PIN TO PIN A kang
● Support a kang private agreement
Humanized installation hole position
● A variety of installation holes, more stable installation, more convenient
● Reserved camera installation hole position is easy to use
Multi-function serial port
● External connection of the lamp board
● External connection sensor
● External GPS
● Support power failure state memory function.
● Support the functions of timer capture and event capture.
● Support motion/crossing detection and area intrusion.
● Support three streams technology, each stream can be configured independently.
● Support 255 preset bits, 8 cruise scans.
● Support timed task preset points, (pattern, cruise, left and right) scanning.
● Support 1 channel audio input/output and 1 channel alarm input/output.
● Support backlight compensation, strong light suppression, automatic electronic shutter, 3D noise reduction and other functions.
| model | JIO-3525-DG |
| Movement parameters | |
| Sensor type | 1/2.8 Progressive Scan CMOS |
| Effective pixel | 2 million |
| minimal illumination | Color:0.001Lux @(F1.6,AGC ON);B/W:0.0005Lux @(F1.6,AGC ON) |
| noise-signal ratio | ＞55dB |
| Day and night switching mode | Automatic ICR filter switch, automatic, color, black and white |
| Lens parameters | |
| focal distance | f = 4.7-164.5mm，35X optical zoom and digital zoom of 16 x |
| iris diaphragm | Automatic / manual, maximum aperture: F1.6~F 4.3 |
| shutter | 1 / 25 seconds to 1 / 100,000 seconds; slow shutter support |
| Horizontal field of view angle | 60.1-2.1 degrees (wide Angle-looking far) |
| Near camera distance | 100mm-1500mm (wide Angle-far) |
| encoded mode | |
| Video compression standard | H.265 / H.264，H .265+/H.264+ |
| H.265 Ending type | BaseLine Profile / Main Profile / High Profile |
| H.264 Ending type | BaseLine Profile / Main Profile / High Profile |
| Video compression code rate | 64Kbps~16Mbps |
| Audio compression standard | G.711A /G.711U/G.726/AAC |
| Audio compression code rate | 16Kbps(G.711)/ ( G.711U )/ (G.726)/(AAC) |
| image parameter | |
| Main code flow resolution |
50Hz: 50fps (1920 × 1080,1280 × 720); 60Hz: 60fps (1920 × 1080,1280 × 720)； |
| Second code-stream resolution | Independent of the main code stream set 50Hz: 50fps(720×576，352×288); 60Hz: 60fps(720×576，352×288) |
| The third code-stream resolution |
50Hz: 50fps(1280 × 720，720×576，352×288); 60Hz: 60fps(1280 × 720，720×576，352×288) |
| Image Settings | Brightness, contrast, saturation, sharpness, color, adjustable through the browser |
| Backlight compensation | Supported, and can have customizable areas |
| Strong light inhibition | Support, and the eclipse function |
| Exposure mode | Auto exposure / manual exposure / antidrag shadow / low light priority / highlight priority / aperture priority / shutter priority / lock mode |
| Focus mode | Automatic focus / manual focus / semi-automatic focus |
| zone focusing | support |
| Electronic fog | support |
| Electronic anti-shake | support |
| Day and night conversion | Automatic, manual, image algorithm, timing, serial port trigger |
| 3D noise reduction | support |
| Picture superposition | Support BMP 24 bit image superposition, can be customized area |
| permeability | Automatic, and area selection |
| Region of interest (ROI) | Support three code flow, set 4 fixed areas |
| Network function | |
| memory function | Micro SD / SDHC / SDXC card (256G) disconnected local storage, NAS (NFS, SMB / CIFS support |
| Support agreement | TCP/IP,MTU ,HTTP,HTTPS,FTP,DHCP,D DNS,UPNP ,RTSP,RT M P,NTP,SMTP,PPPOE |
| API | Support ONVIF, G B 28181 protocol, support SDK and third-party platform access |
| interface parameters | |
| network interface | 36pin FFC (including network port, RS485, RS232, SDHC, Alarm In / Out, Line In / Out, power supply) |
| External interface | HDMI |
| general requirements | |
| Operating temperature and humidity | -30℃ ~60℃, humidity is less than 95% (no condensation) |
| power suppl | DC12V±10% ，2A |
| power dissipation | 2.5W Static (4.5 WMAX) |
| size | 98.9*52*60mm |
| weight | 329g |
If there is any change in product design and specifications, real-time update cannot be guaranteed. Specification parameters and pictures are for reference only, subject to the physical object.
