Laser rangefinding has become a crucial component in various industries—from defense and surveying to robotics and consumer electronics. Among all laser wavelengths available, the LRF Module has emerged as one of the most widely adopted solutions due to its excellent balance of performance, safety, and cost efficiency.

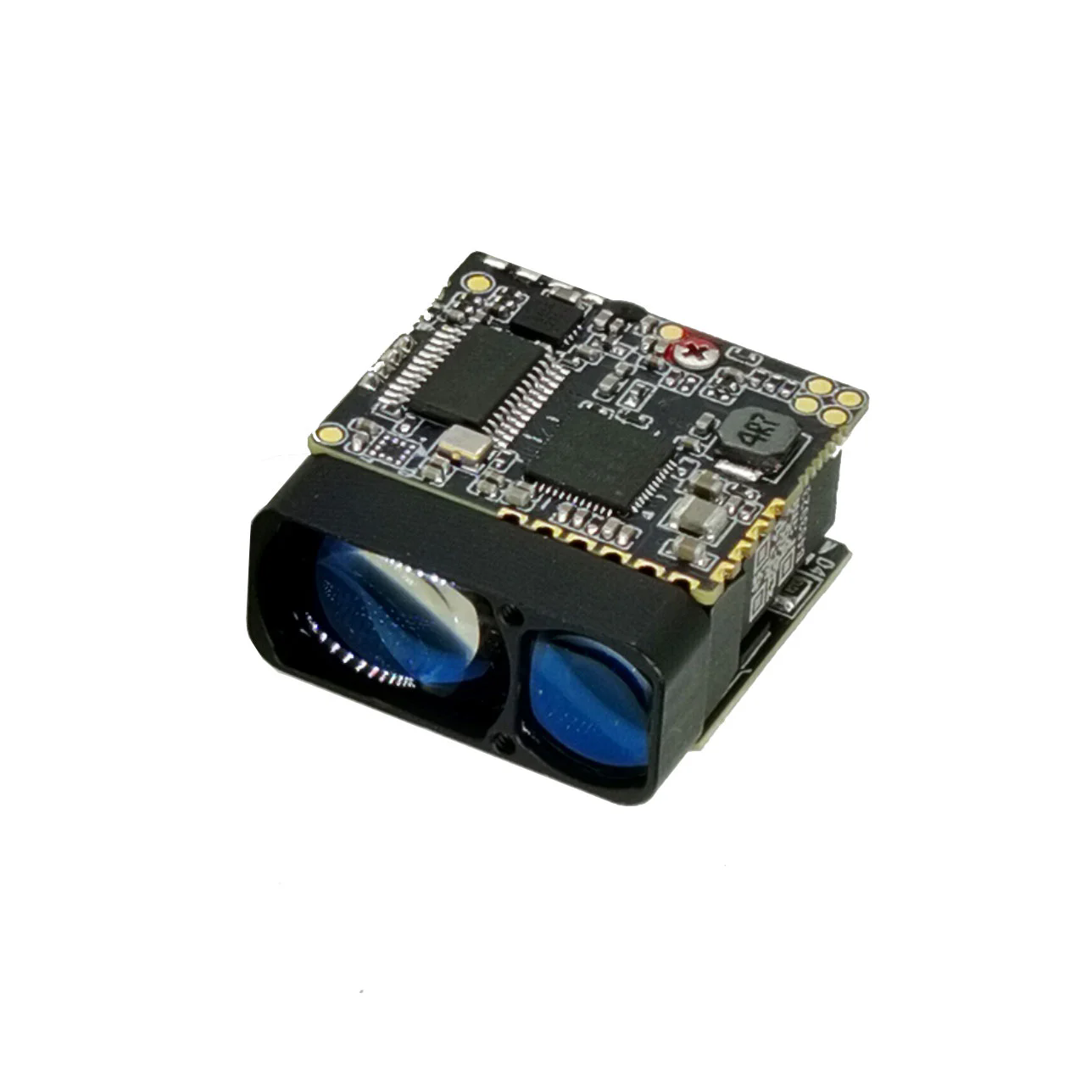

The 905nm LRF Module operates on the Time-of-Flight (ToF) principle, where a laser pulse is emitted toward a target, and the time taken for the reflected light to return is measured to calculate distance. This method is highly accurate, even over long distances, and is optimized in the 905nm wavelength band for stable performance in varied environmental conditions.
The 905nm wavelength sits in the near-infrared (NIR) spectrum, which provides several technical benefits:
Eye Safety: 905nm modules are Class 1 laser safe under standard operation, making them suitable for consumer and industrial use.
Compact Design: The shorter wavelength enables smaller optical components, reducing overall module size.
High Detection Sensitivity: Compatible with cost-effective silicon-based photodiodes, which deliver excellent response rates at this wavelength.
Stable Outdoor Operation: 905nm lasers are less affected by ambient sunlight than visible lasers, ensuring reliable measurement outdoors.
The laser pulse is generated by a semiconductor laser diode, guided by collimating optics, and detected by a PIN or APD (Avalanche Photodiode) sensor. Advanced digital signal processing (DSP) algorithms filter noise, amplify signal returns, and provide precise measurement even in fog, rain, or low reflectivity scenarios.
Choosing the right laser rangefinder module depends on various technical factors such as range, accuracy, repetition rate, and integration capability. The 905nm LRF Module offers a unique combination of efficiency and reliability, making it ideal for systems where both performance and cost matter.
Key Benefits:
High Measurement Accuracy: Capable of centimeter-level precision depending on optics and signal processing algorithms.
Compact and Lightweight: Suitable for drones, handheld devices, and portable surveying instruments.
Fast Response Time: High repetition rates (up to tens of kHz) enable real-time distance scanning and mapping.
Durability and Stability: Designed to function reliably in harsh environments including dust, humidity, and temperature variations.
Easy Integration: Supports UART, USB, or CAN communication interfaces for direct system integration.
Energy Efficiency: Low power consumption for battery-operated or embedded systems.
Below is a sample of typical 905nm LRF Module specifications for reference:
| Parameter | Typical Value | Description |
|---|---|---|
| Wavelength | 905 nm | Near-infrared laser diode output |
| Measuring Range | 5 m – 4000 m | Depends on target reflectivity and optics |
| Accuracy | ±0.1 m to ±0.5 m | High precision under ideal conditions |
| Beam Divergence | < 1.5 mrad | Narrow beam for long-range focus |
| Output Power | ≤ 75 W (pulse) | Eye-safe per IEC 60825-1 standard |
| Repetition Rate | 1 Hz – 20 kHz | Adjustable for different applications |
| Interface | UART / CAN / USB | Flexible connection options |
| Operating Voltage | 5V / 12V | Suitable for embedded systems |
| Operating Temperature | -40°C to +85°C | Wide environmental tolerance |
| Detector Type | APD (Si) | High sensitivity for weak returns |
The 905nm LRF Module provides a robust foundation for applications such as:
Autonomous Vehicles and Robotics: Collision avoidance and mapping.
Military and Defense Systems: Targeting and surveillance.
Surveying and Mapping Instruments: Distance and elevation measurement.
Smart Devices: Range-based gesture sensing and obstacle detection.
Industrial Automation: Positioning and material height detection.
Each of these applications benefits from the 905nm module’s ability to deliver consistent accuracy, even under challenging lighting conditions.
Performance optimization depends on several interconnected factors—optical alignment, signal amplification, and environmental calibration. A well-designed 905nm module achieves its highest efficiency when the optical, electronic, and firmware layers are precisely tuned.
A. Optical Calibration
Ensure the transmitter and receiver lenses are precisely aligned. Misalignment can result in reduced return signal strength and inaccurate readings.
B. Signal Processing Optimization
Modern modules include advanced DSP algorithms that eliminate false reflections from non-target surfaces, filter ambient noise, and refine distance computation using waveform analysis.
C. Environmental Compensation
Temperature fluctuations can slightly affect the refractive index of air and electronic response times. Using temperature compensation sensors and calibration routines maintains consistent accuracy in different conditions.
D. Surface Reflectivity Consideration
Target surfaces with low reflectivity (like dark or matte materials) reduce signal strength. Adjusting laser power or exposure time helps achieve consistent readings.
E. Integration and Firmware Updates
For developers integrating the 905nm LRF Module into products, continuous firmware optimization is essential to enhance real-time detection performance and reduce processing latency.
By applying these techniques, engineers can fully exploit the 905nm module’s capacity to perform high-speed, long-distance, and low-noise measurement across diverse applications.
Q1: How does the 905nm wavelength compare to 1550nm in laser rangefinding?
A: The 905nm wavelength is more cost-effective and compact because it uses silicon-based detectors, which are widely available and inexpensive. While 1550nm systems offer longer-range performance and higher eye safety thresholds, they require more complex and expensive InGaAs sensors. Therefore, 905nm is ideal for cost-sensitive, mid-range, and compact designs such as drones and handheld devices.
Q2: Can a 905nm LRF Module work accurately under bright sunlight or fog?
A: Yes, modern 905nm modules incorporate narrowband optical filters and advanced digital signal processing that help isolate the laser return signal from ambient light. Although extreme fog or heavy rain can slightly reduce range performance, calibration algorithms compensate effectively to maintain reliable readings under most weather conditions.
The development of 905nm LRF Modules is closely tied to the evolution of LiDAR and optical sensing technologies. With increasing demand for automation, navigation, and environmental awareness, these modules are finding their way into consumer products, industrial robots, and automotive systems. The trend toward miniaturization and low power consumption makes the 905nm module a key player in the next generation of smart sensing systems.
Manufacturers are also integrating multi-pixel detection and machine learning-based signal interpretation to improve accuracy in complex environments—paving the way for adaptive rangefinding systems that learn and adjust in real time.
A high-performance 905nm LRF Module delivers unmatched precision, reliability, and adaptability for modern applications. Its efficient design, compact structure, and long-range accuracy make it a preferred choice across diverse industries—from defense to autonomous robotics.
JioptiK, a professional optical technology manufacturer, is dedicated to developing advanced laser rangefinding modules that combine superior engineering with seamless integration. Each JioptiK 905nm LRF Module is rigorously tested to ensure consistent performance and long-term stability, even under demanding conditions.
If you are looking for a reliable partner to integrate high-precision laser rangefinding into your system, contact us to learn how JioptiK can provide tailored 905nm LRF Module solutions to fit your specific technical requirements and application goals.
