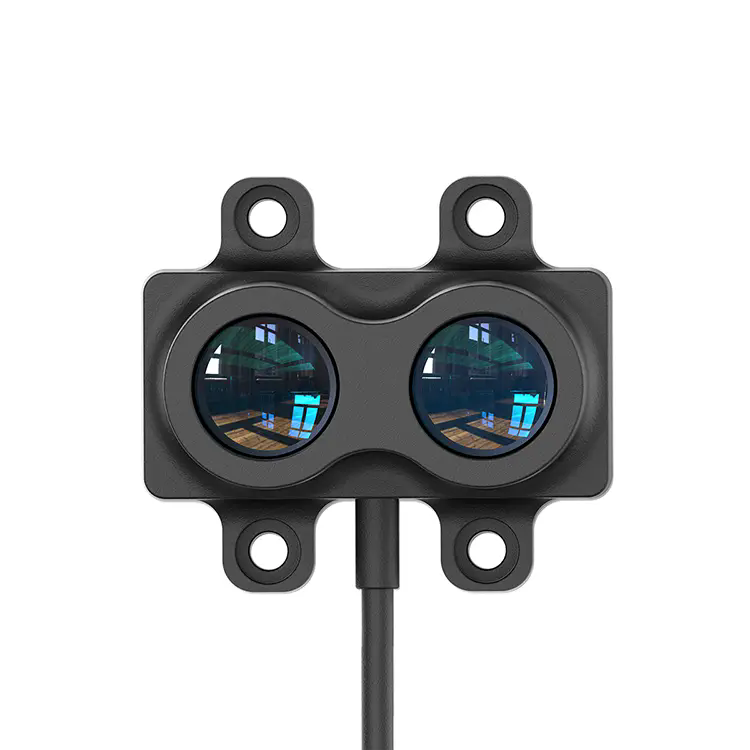

TOF (Time-of-Flight) Range LiDAR is a sensing technology that measures distances by emitting a laser pulse, timing its return after reflection, and converting that time-of-flight into precise range data. Unlike scanning LiDAR that sweeps a beam across a scene, TOF LiDAR can operate in a more direct, often solid-state or flash manner, enabling fast 3D depth imaging. The central message of this article is that the latest generation of TOF Range LiDAR products—featuring high accuracy, extended range, low power consumption, and robust performance in complex environments—represent a compelling solution for applications in autonomous driving, robotics, industrial automation, and smart infrastructure.
Below is a representative specification table illustrating typical performance targets for a leading TOF Range LiDAR design (the actual product you develop may adjust these values):
| Parameter | Typical Value / Target |
|---|---|
| Measurement Range | 0.2 m to 200 m |
| Range Accuracy | ±2 cm at 100 m |
| Angular Field of View (FOV) | 120° × 30° (horizontal × vertical) |
| Angular Resolution | 0.1° |
| Frame Rate | 30 Hz |
| Laser Wavelength | 905 nm (eye-safe class) |
| Power Consumption | ≤ 8 W |
| Interface & Output | Ethernet / GigE / ROS / point cloud |
High-speed, full-scene capture: Because TOF systems can illuminate and capture depth data across an entire field (e.g. flash or array capture), they can avoid the mechanical scanning delays of traditional LiDARs.
Compactness and robustness: Solid-state designs without moving parts reduce wear, size, and system complexity.
Lower system cost at scale: Simpler optics and electronics (versus phased-array or FMCW systems) help reduce cost for large deployments.
Stable performance under varying lighting: TOF systems use active illumination, so ambient light changes have less impact on depth measurements.
Wide applicability: Suitable for autonomous vehicles (perception & obstacle detection), robotics, industrial automation (e.g. material handling, 3D picking), smart cities (traffic monitoring, structural inspections), and infrastructure safety.
The global TOF LiDAR market was valued at USD 1.99 billion in 2024 and is forecast to reach USD 5.47 billion by 2030 (CAGR ~18.4 %)
In the automotive domain, TOF-based LiDAR systems are increasingly adopted in advanced driver assistance systems (ADAS) and autonomous driving stacks.
Demand from robotics, logistics, and smart infrastructure is fueling adoption outside of automotive, making volume economies more accessible.
While FMCW LiDAR offers benefits in interference robustness and extended range, it is more complex and expensive. The debates between TOF and FMCW highlight trade-offs in cost, integration, and performance.
TOF remains simpler to implement, particularly for mid-range applications, and can complement scanning LiDAR by serving as a fast, wide-angle depth sensor.
In many robotics or industrial settings where range demands are moderate, TOF offers a sweet spot of performance, cost, and reliability.
A short laser pulse is emitted toward the target.
The pulse reflects off surfaces in the scene.
The sensor detects returning photons and measures the time delay.
Distance = (speed of light × round-trip time) ÷ 2.
Depth maps or point clouds are constructed over the entire field.
Because the speed of light is known, very fine timing precision is required; this demands fast electronics, good timing calibration, and photon detection sensitivity.
Photon detectors & SPAD arrays: Single-photon avalanche diodes (SPADs) enable detecting extremely faint returns using photon counting. Some advanced methods (e.g., histogram-less acquisition) reduce dead-time and pile-up distortions.
Beam shaping & illumination control: Optimizing laser pulse shape, divergence, and timing helps maximize signal-to-noise while maintaining eye safety.
Signal processing and calibration: Range-walk correction, ambient light suppression, and multi-peak detection are crucial to deliver accurate depth under varying return conditions.
Hardware integration: Tight integration of optics, electronics, processing, and thermal control reduces size and improves stability.
Firmware & software stack: Real-time filtering, point-cloud generation, object segmentation, and sensor fusion (with cameras, radar) are often part of the embedded pipeline.
Sensor placement & coverage planning: Optimal mounting (vehicle, robot, infrastructure) ensures that field-of-view overlaps and reduces blind zones.
Sensor fusion: TOF LiDAR outputs are often combined with camera or radar data for higher confidence perception (e.g. depth + color for semantic understanding).
Calibration & alignment: Intrinsic/extrinsic calibration ensures that depth maps align with other sensors in a common coordinate frame.
Data rate & bandwidth management: Streaming full-depth data at high frame rates can stress network interfaces—efficient compression and smart ROI filters are used.
Thermal & environmental control: Ensuring performance across a wide temperature range and under weather conditions like rain or dust.
Q: What is the maximum reliable range of TOF Range LiDAR?
A: The maximum reliable range depends on laser power, receiver sensitivity, optics, and ambient conditions. For advanced TOF LiDAR systems, ranges of up to ~200 m are feasible under favorable conditions. Range may degrade in heavy rain, low reflectivity surfaces, or high ambient light.
Q: How does ambient light or sunlight affect TOF measurements?
A: Ambient light adds noise to the photon detector and can reduce signal-to-noise ratio. TOF designs mitigate this via narrow-band optical filters, temporal gating, background subtraction, and dynamic range control. High ambient suppressors and calibration help maintain accuracy even outdoors in bright sunlight.
Q: How precise is TOF Range LiDAR in real-world conditions?
A: Precision is often on the order of centimeters (e.g. ±2 cm), but real-world error depends on factors like surface reflectivity, angle of incidence, multiple reflections, and detector noise. Well-designed calibration and processing reduce systematic errors.
Q: Can TOF LiDAR handle fast-moving objects?
A: Yes. Since the system captures full depth per frame, it can track fast-moving objects provided the frame rate is high enough (e.g. 30–60 Hz or more). Pixel-level motion blur is less of an issue since depth is instantaneous per pulse, not via scanning delay.
Integration and miniaturization: Expect monolithic integration of optics, detectors, and processing to reduce size and cost.
Hybrid TOF + FMCW systems: Combining the strengths of both modalities offers better immunity to interference, range, and performance trade-offs.
Advanced algorithms and AI processing: Adaptive noise filtering, deep learning for segmentation, and real-time point-cloud compression will push capability boundaries.
Standardization and interoperability: Unified sensor interfaces, ROS compatibility, and standard data formats will ease integration into complex systems.
Mass adoption driven by volume: As demand from automotive, logistics, and smart infrastructure grows, economies of scale will lower cost barriers.
Emphasize range vs. accuracy trade-off: show how your design achieves longer range without sacrificing precision.
Highlight power efficiency and thermal stability: many competing designs struggle to maintain calibration across temperature swings.
Demonstrate real-world robustness: capacity to perform in challenging indoor/outdoor transitions, under ambient light, rain, dust.
Offer a software development kit (SDK), fusion modules, and compliance to open standards to facilitate adoption in customer systems.
Leverage strong testing, certification, and application references to build trust.
TOF Range LiDAR presents a compelling sensing solution that bridges the gap between cost, performance, and system simplicity. With fast, full-scene depth capture, robust behavior under ambient conditions, and a path toward scalable integration, it addresses many of the practical challenges of deploying 3D perception in vehicles, robots, and smart infrastructure.
Among industry players, Jioptik continues to push innovation in TOF Range LiDAR, refining both hardware and software pipelines to deliver reliable, high-performance sensors tailored for real-world deployments. For inquiries about customizing TOF Range LiDAR modules, system integration, or performance evaluations, contact us to explore the best solution for your application.
For more information on our products, please contact Jioptik.
