Looking for a precise way to measure distances in robotics, surveying, or automation projects? A Laser Rangefinder Module provides high-accuracy distance measurement, rapid response times, and compact design. This article answers all the key questions about this essential device: what it is, how it works, why it's indispensable, and what makes Shenzhen Jioptik Technology Co., Ltd. a leading supplier. Explore product parameters, application insights, and FAQs for an informed purchasing decision.
Table of Contents:
What is a Laser Rangefinder Module?
How Does a Laser Rangefinder Module Work?
Why Choose Our Laser Rangefinder Module?
Shenzhen Jioptik Technology Co., Ltd. Overview
FAQ: Laser Rangefinder Module Questions Answered
Summary and Contact

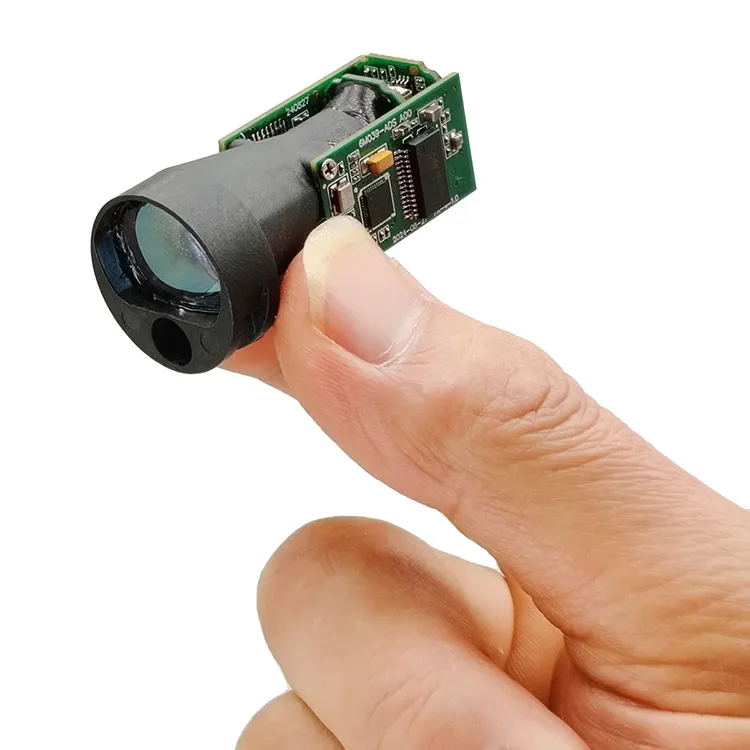

A Laser Rangefinder Module is an optical sensor device designed to measure the distance between itself and a target object using a laser beam. It is widely used in industrial automation, robotics, drones, security systems, and precision surveying. These modules combine compact design, fast response times, and high accuracy, often reaching millimeter-level precision over distances from centimeters to several hundred meters.
The module's advantages include:
Compact and lightweight design suitable for embedded systems.
High measurement accuracy with low power consumption.
Wide application range: robotics, drones, industrial automation, security, and construction.
Key Features at a Glance:
| Feature | Description |
|---|---|
| Measurement Range | 0.03m – 200m (varies by model) |
| Accuracy | ±1mm – ±10mm depending on model |
| Response Time | 0.1ms – 50ms |
| Interface | UART / I2C / PWM |
| Laser Class | Class 1 / Class 2 (Eye-safe) |
| Operating Voltage | 3.3V – 5V |
| Operating Temperature | -20°C – 60°C |
Laser Rangefinder Modules operate based on the Time-of-Flight (ToF) principle. A laser pulse is emitted toward a target, reflected back, and the time taken for the light to return is measured. This allows the module to calculate the precise distance to the object.
Step-by-Step Operation:
Emit a laser pulse toward the target.
Receive the reflected pulse with a photodetector.
Calculate the round-trip time.
Convert the time into distance using the speed of light.
Output the result through UART/I2C/PWM for further processing.
Technical Advantages:
Millimeter-level accuracy for critical applications.
Fast response suitable for real-time robotics and drone navigation.
Multiple interfaces allow integration with microcontrollers, PLCs, or embedded systems.
Traditional vs. Laser Rangefinder Modules
| Feature | Ultrasonic Sensor | Laser Rangefinder Module |
|---|---|---|
| Accuracy | ±1cm – ±5cm | ±1mm – ±10mm |
| Range | 2m – 5m | 0.03m – 200m |
| Response Time | 50ms – 200ms | 0.1ms – 50ms |
| Target Detection | Limited to hard surfaces | Works with reflective and non-reflective targets |
| Size | Larger, bulky | Compact, lightweight |
Our modules from Shenzhen Jioptik Technology Co., Ltd. stand out for precision, reliability, and versatile application. They are suitable for professional engineers, robotics enthusiasts, and industrial automation projects.
Why they are essential:
Accurate distance measurement ensures safe and efficient operation in automation.
Compact design allows embedding in drones, vehicles, and robotics without space constraints.
Rapid response time supports real-time monitoring and obstacle detection.
Energy-efficient design reduces operational costs.
Benefits Summary:
Seamless integration with microcontrollers and industrial PLCs.
Long-range measurement with consistent accuracy.
Eye-safe laser classes for safety in commercial and consumer environments.
Product Variants Table
| Model | Measurement Range | Accuracy | Interface | Response Time | Operating Voltage |
|---|---|---|---|---|---|
| LRF-200 | 0.03m – 200m | ±2mm | UART/I2C | 0.5ms | 3.3V – 5V |
| LRF-100 | 0.03m – 100m | ±5mm | UART/I2C | 1ms | 3.3V – 5V |
| LRF-50 | 0.03m – 50m | ±3mm | UART/I2C/PWM | 0.2ms | 3.3V – 5V |
Shenzhen Jioptik Technology Co., Ltd. is a leading manufacturer of precision laser modules and sensing technology in China.
Shenzhen Jioptik Technology Co., Ltd. is a technology company specialising in the design, development, production and sales of laser and fibre optic gyroscopes, inertial navigation systems, laser rangefinder modules, laser illuminators, opto-electronic pods and other products. The sales headquarter is located in Shenzhen. Production bases are located in Beijing, Tianjin, Hangzhou, Luoyang and Xi'an.
With a R&D and production area of about 16,000 square metres, we have the ability of large-scale batch production, a large number of independent intellectual property rights, and the performance of our products has reached the international advanced level. Our products are widely used in security, thermal imaging, unmanned aircraft, unmanned vehicles, artillery, aircraft, ships and vehicle-mounted positioning and orientation system integration.
Company Highlights:
Professional R&D team for sensor module innovation.
ISO-certified manufacturing facilities ensuring consistent quality.
Wide product portfolio including Laser Rangefinder Modules, LiDAR sensors, and optical components.
Global shipping and professional technical support.
Applications Across Industries:
| Industry | Application |
|---|---|
| Robotics | Obstacle avoidance, navigation |
| Drones | Altitude measurement, terrain mapping |
| Security | Perimeter monitoring, automated access control |
| Industrial | Distance monitoring, process automation |
| Construction | Surveying, leveling, material measurement |
What is the maximum range of your Laser Rangefinder Module?
Our modules vary, from 0.03m up to 200m depending on the model.
How accurate is the measurement?
Accuracy ranges from ±1mm to ±10mm, ensuring precise readings for industrial and hobby projects.
What interfaces are available?
UART, I2C, and PWM interfaces are supported for seamless integration.
Is it safe for the eyes?
Yes, our modules use Class 1 or Class 2 lasers, which are safe for human eyes.
Can it work outdoors?
Yes, modules are designed for both indoor and outdoor environments, with up to 60°C operating temperature.
What is the response time?
Response times range from 0.1ms to 50ms, depending on the model.
What devices can it be used with?
Microcontrollers, PLCs, robotics platforms, drones, and embedded systems.
Is it energy-efficient?
Yes, the modules operate at low power, typically between 3.3V and 5V.
How do I install the module?
Simply connect power and communication lines, and configure via UART/I2C commands.
Do you provide technical support?
Yes, Shenzhen Jioptik Technology Co., Ltd. offers professional guidance for installation and integration.
In conclusion, the Laser Rangefinder Module is a must-have device for anyone seeking precise, reliable, and compact distance measurement technology. Whether it's robotics, industrial automation, drones, or security systems, these modules provide millimeter-level accuracy and rapid response times.
As a trusted manufacturer, Shenzhen Jioptik Technology Co., Ltd. continues to deliver high-quality Laser Rangefinder Modules with comprehensive technical support and global distribution. Their commitment to innovation and customer satisfaction makes them an industry leader.
For inquiries, technical specifications, or to place an order, please contact us directly to experience the precision and reliability of our products firsthand.
